Everybody gets their house wired by putting expensive and expensive items and pours money like water to make that wiring beautiful and attractive. People spend thousands of rupees to make their wiring beautiful and designed, but during this time many people do not pay special attention to those things which are very important for them. 220v high voltage ac supply is provided in our homes. Tremors are common after contact with the home due to a malfunction in the wiring or equipment used. Sometimes these shocks are so fatal that the victim also has to go to the hospital. But if all these things are kept in mind while getting the wiring done and the ground wire is also connected in the wiring, then any major damage can be avoided in any such accidental situation. With the help of wiring of ground wire, the chance of jerking becomes very less, which does not harm the body much.
But do you know what ground wire is? Do you know what earthing is? Do you know how to apply earthing? Most people are not fully aware of this, due to which they are not able to get its wiring done in their homes and are always surrounded by dangers. So, let us tell you in detail about ground wire connection today.
 |

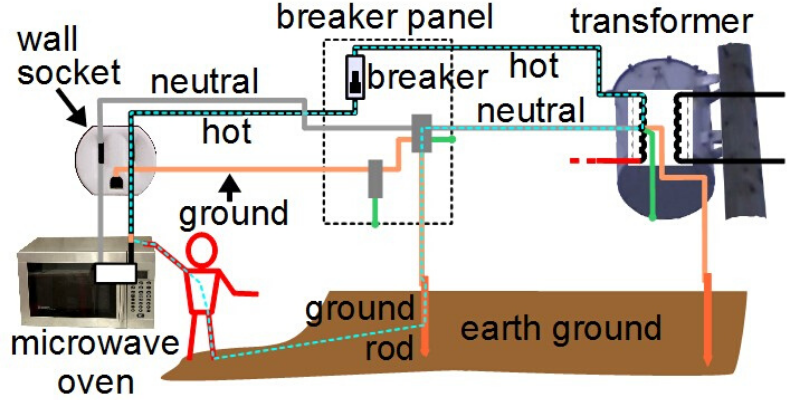

| Ground earthing wire connection |
What is ground wire and what is its function?
Ground wire is a device used in home wiring that increases reliability in the wiring using safety. If electric shock starts in the cabinet of any appliance due to malfunction, but even if wiring of ground wire is done in the house, then even after touching with such a malfunctioning device, the body does not get shock and human The body remains safe. The ground wire is also called earthing and in domestic wiring the cover color of this earthing wire is green.
Where is the connection to the ghost made?
Only 2 connection wires are required to do electrical work. One heat wire is connected to the wire of the electric pole and the other cold wire connection is removed from the earth. After removing both these connections properly, any device can be used. But the connection of ground wire is not for the use of electricity but only for safety.
Just as the connection of the cold is removed from the earth, in the same way, the connection wire for the ground wire is also removed from the earth. This wire is then connected only to the 5-plug socket of the electric board after being removed from the earth.
How is the connection of ground wire in a device?
220v ac is given as power to any device that works on electricity. A connection wire is attached to all the equipment to connect it to the power board. It is through this wire that current reaches that device. But at the same time, to connect this wire to the power board, it also has a power plug which is placed in the socket of the board.
If you have used some such devices, then you must have noticed that the connection wire plug of a device has only 2 pins, then the plug of a device also has 3 pins. A 3 pin device plug has 2 connection pins for input supply only, but the third pin at the top is the pin that is connected to the ground wire connection. Similarly, the power plug of iron also has 3 pins, out of which the top pin is only for ground wire connection. Also the ground wire pin is connected to the cabinet of any device.
Examples of devices with ground wire connections
There are many devices in which a ground wire connection is made, while there are many such devices in which this connection is not done. A good example of a ground wire connection device is electric iron. Iron is a device that is used to press cloth in almost all homes nowadays. In this device, the connection of ground wire can be understood very easily and better.
Many times, due to technical folt, while pressing the fabric, iron also causes shock. Although there can be many reasons for the shock of iron, but this problem is mostly due to our carelessness. One of these inadvertent is not to get the ground wire wiring done at home.
Iron has an option for ground wire connection but due to lack of proper information, people consider that connection to be useless and do not have its wiring done. Later, when there is a problem in such devices and it starts sparking from its cabinet, people have to suffer physical harm. Usually, if the power plug has 3 connection pins, then the ground wire connection will also be done in that device.
How does a ground wire connection work?
Whenever a device encounters a sparking problem, it means that there is a current flowing wire in contact with the cabinet of that device. But since the ground wire connection is connected to the cabinet of that device, if the ground wire wiring is done in the house, then all the protons (+ charge) through the ground wire are passed through the cabinet of that device. ) Are contained in the earth.
 |
| Earth ground wire connection |
In such a situation, even after being sparked, the body is not harmed even after touching it. However, even though the wiring of the ground wire does not cause any harm by touching the sparking device, if the presence of electrical current is checked by attaching the ac tester to the cabinet of that device, even if the shock does not occur. tester led bulbs will light up.
Also, be aware that during ground-wire connection, any device consumes more power due to sparking, which can lead to a huge increase in electricity bill. Therefore, if there is any doubt of sparking in any device, get it repaired immediately, otherwise you may face financial and physical damage.
